NEW VALENT ROOFTOP UNITS RAISE STANDARDS TO THE ROOF
Valent’s new rooftop unit (RTU) optimizes comfort and efficiency by modulating to simultaneously control temperature and humidity. This product combines the versatility and precision Valent is known for in mixed air applications with the value and configurability of an RTU.
INDUSTRY-LEADING FEATURES AND BENEFITS
Traditional rooftop units are often limited in their functionality, requiring building designers, operators, and occupants to settle. Valent’s rooftop units are moving the industry forward by including the following features as standard, not premium add-ons.
- Inverter scroll compressors modulate their speed at part load conditions to save energy and operating costs
- Direct-drive fans provide variable air volume (VAV) across a wide performance range
- Electronically commutated (EC) motors in the condensing fan modulate to control head pressure and increase efficiency
- Factory-programmed controls can easily be adjusted in the field and configured for flexible operation in many environmental conditions
- Robust construction includes pre-painted double wall cabinet with injected foam insulation on all sides including the floor and roof, minimizing air leakage and sound transmission
MORE OPTIONS, HIGHER EFFICIENCY
To get the next level of efficiency and comfort out of your rooftop unit, take advantage of these options not often seen in an RTU.
- Modulating hot gas reheat (HGRH) enables simultaneous dehumidifying and cooling to control air moisture and prevent clammy spaces
- Air-source heat pumps with boost speed control deliver sustainable all-electric cooling and heating down to 0º
- Modulating gas furnaces eliminate cycling to provide tight temperature control while heating
- Modulating powered exhaust makes sure space pressure is maintained at acceptable levels, taking guesswork out of it
SPECIFICATIONS
| CABINET | AIRFLOW (cfm) | COOLING CAPACITY (tons) | HEATING CAPACITY (MBH) | ELECTRIC HEAT (kW) | DIMENSIONS (inches) |
|---|---|---|---|---|---|
| VR-100 | 500–2,000 | 3–5 | 50–150 | 10, 25, 40 | 90x40x42 |
| VR-200 | 1,250–4,000 | 6–10 | 75–250 | 25, 40, 60 | 100x55x48 |
| VR-300 | 2,000–7,900 | 10–17.5 | 200–400 | 30, 60, 90 | 100x70x71 |
| VR-400 | 3,500–13,000 | 17.5–30 | 250–600 | 60, 80, 140 | 130x84x77 |
Read more about Valent’s revolutionary rooftop units on our product page.

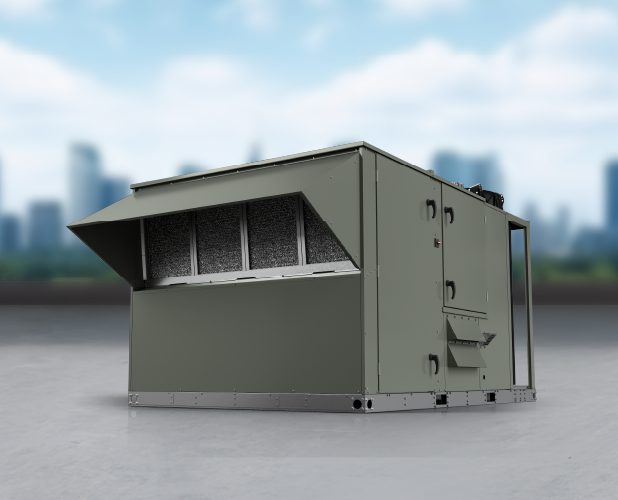

Valent RTUs save energy and operating costs while prioritizing comfort
